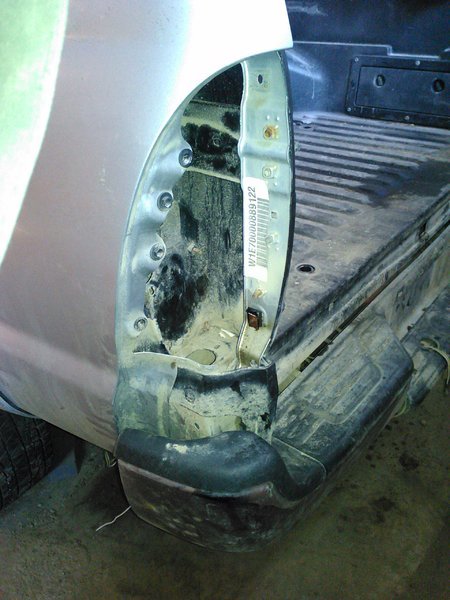

Remove Tail lights

There are 2 10mm bolts on the inside of the tailgate pillar. Disconnect the wiring harness here, and feed it back through the hole in the bottom of the box.

Remove Tail lights
10316133, Mar 24, 2017
    There are no comments to display.
  • Album:
    2007 AC Box and Cab Removal
    Uploaded By:
    10316133
    Date:
    Mar 24, 2017
    View Count:
    1,026
    Comment Count:
    0
    Tags:
    rear light removal rear bed removal rear box removal

    EXIF Data

    File Size:
    57.8 KB
    Mime Type:
    image/jpeg
    Width:
    450px
    Height:
    600px


    Note: EXIF data is stored on valid file types when a photo is uploaded. The photo may have been manipulated since upload (rotated, flipped, cropped etc).

  • Be care ful turning the nuts out. I broke the threaded portion on the light housing cause the nut was seized. Not sure how you can avoid that
