Anchor In X-member

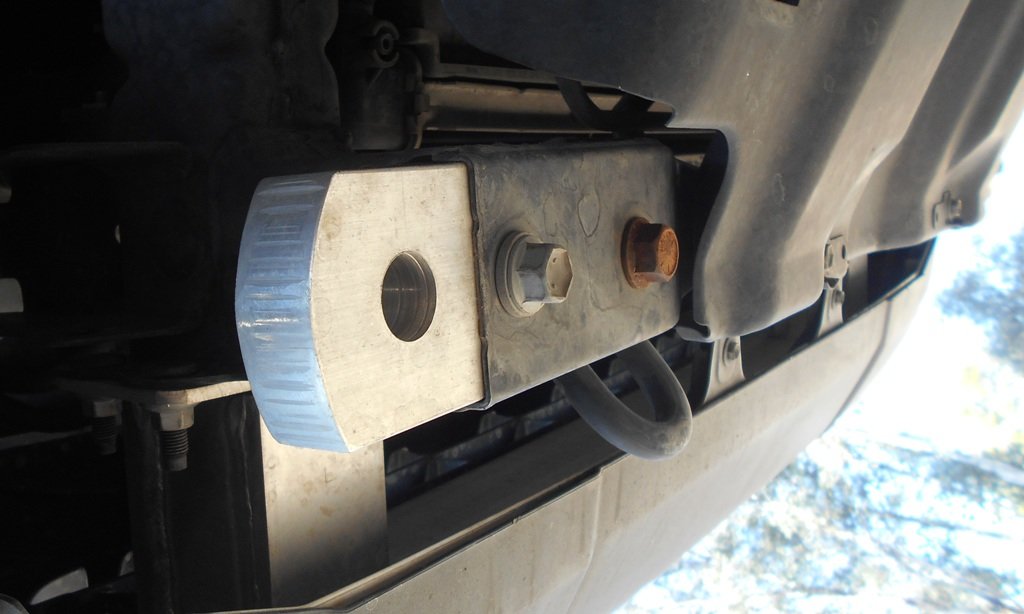

These anchors do not depend on bolt strength to transfer loads into the frame. Could have made them out of steel but it would have added a lot of weight. The eyelet is 6061 T-6 forged aluminum - 1.0 thick with 15/16 hole for a 3/4 shackle. Careful fitment allows no movement in the crossmember.

Anchor In X-member
GREENBIRD56, Apr 13, 2019
    There are no comments to display.
  • Album:
    Main
    Uploaded By:
    GREENBIRD56
    Date:
    Apr 13, 2019
    View Count:
    386
    Comment Count:
    0

    EXIF Data

    File Size:
    197.4 KB
    Mime Type:
    image/jpeg
    Width:
    1024px
    Height:
    614px
    Aperture:
    f/3.2
    Make:
    NIKON
    Model:
    COOLPIX L28
    Date / Time:
    0000:00:00 00:00:00
    Exposure Time:
    10/800 sec
    ISO Speed Rating:
    ISO 80
    Focal Length:
    4.6 mm


    Note: EXIF data is stored on valid file types when a photo is uploaded. The photo may have been manipulated since upload (rotated, flipped, cropped etc).

  • Forged 6061 T-6 Aluminum x 1.0 thick. Will fail at 36,000 pounds - so it is good for whatever the x-member can withstand. Doesn't rely on the bolted fasteners for strength.
