Air Springs And Axle Vent Line

These work well for the purpose of leveling loads that flatten the cheapie "1/4 ton" Toyota leafs. However - they also reduce the allowable travel if they are "aired down" to run light. Without 15 psi in this set-up, they bottom too easy.

Air Springs And Axle Vent Line
GREENBIRD56, May 24, 2018
    • GREENBIRD56

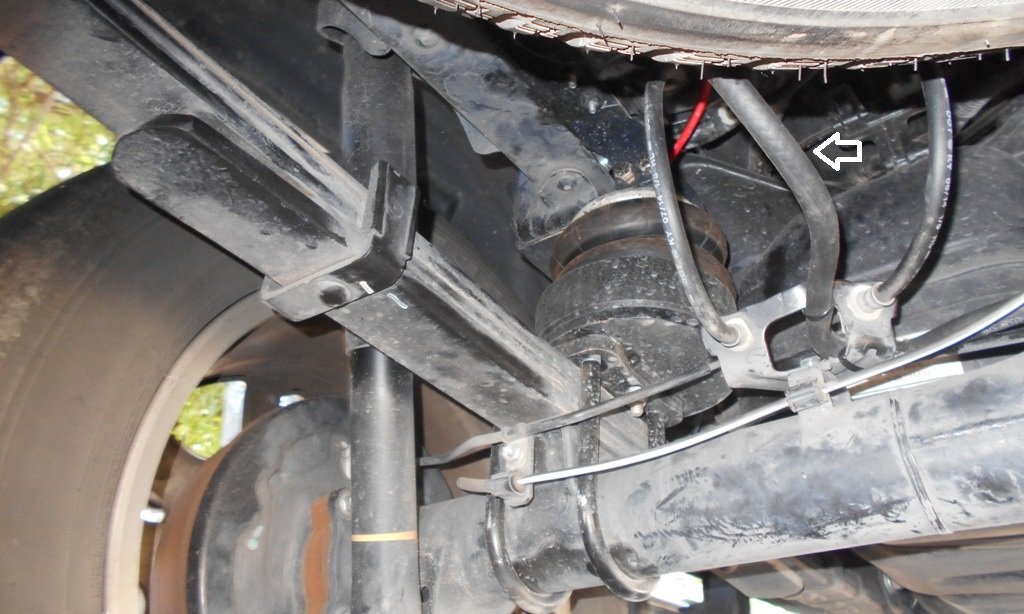

      U-bolt flip with Firestone bags and Daystar cups. Axle vent hose rigged to use the same path as the brake hoses. At the point where the Firestone (unsupported) bracket bends - this stack is 7/8" thick. U-bolts have stayed tight from the start.
